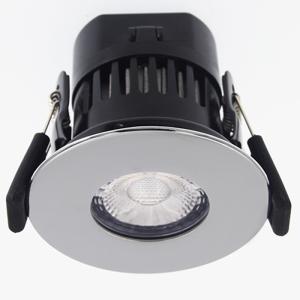

7W Integrated Spotlight Fire Protection 30 60 90 Minutes Fire Rated Downlight
What is a fire rated downlight?
Fire rated downlighters help slow the spread of fire, compared to traditional downlights.
When you cut a hole into a ceiling and install recessed lights, you are reducing the existing fire rating of the ceiling. This hole then allows for fire to escape and spread more easily between floors.
Fire rated downlights have an important role in fire safety, as they effectively block the hole cut into the ceiling. On each downlighter they have an intumescent pad, which will expand when it reaches a certain temperature, and ultimately slow the spread of fire. Different fire rated downlights have different fire rated times, varying from 30 to 90 minutes.
Without fire rated downlights, it can mean that your ceiling collapses within just a few minutes compared to giving you extra time to get out to safety.
Integrated IC Fire Rated Downlight
It's 7W with output lumens 600lm enough for home and residential lighting;
No additional driver needed convenient for installation;
Fast quick connection with 3-pole loop in and loop out for easily and quickly connection of wires.
TECHNICAL DATA
| Voltage | 220~240V | Wattage | 7W LED |
| Chip | COB | Lumen | >600lm |
| Beam Angle | 40 | CRI | Ra>80 (Ra> 90 available) |
| Color Temperature | 2700K/3000K/4000K | Driver | Inserted driver |
| PF | >0.9 | Dimmable | 0-100% dimmable |
| IP Rating | IP44 | Life span | 40,000 hrs |
| Guarantee | 5 years | | |
DIMENSION
| Specification | 82mm | Height | 76.7mm |
| Cut out | 70mm | | |
COMPONENT
| Material | Die-cast aluminum | Color | White, Brush Nickel,Chrome |
Features: 1. 7W/600lm 2. Driver internal 3. with fast quick connection terminal on top of downlight 4. five years warranty
FAQ
| May I have a sample order for LED Downlight ? |
| Yes, sample order is available. |
| What about the lead time? |
| The lead time of Tilt LED Downlight sample is 5-7 days, The delivery time of regular order is 30-45 days. |
| Do you have any MOQ limit for Downlight order? |
| Yes, the MOQ limit is according to different items. Exact MOQ will be showed in quotation. |
